Stainless steel/Aluminium alloy Static torque sensors 1~150N.m Torque Transducer
1. Descriptions
1-150N·M Aluminum Alloy Discontinuous Static Torque Sensor Force Torque Sensor FA601 is a model of our brand FIBOS FA6-Series, Static Torque Sensor Force Torque Sensor FA601 can be used to measure Static Torque force 1N.m,2N.m,3N.m,5N.m,6N.m,10N.m,20N.m,30N.m,50N.m,100N.m and 150N.m capacity, its Rated output range is 2.0±1%mV/V, and its Zero Balance range is ±1%F.S..
2. Specifications
| Product name | static torque sensor |
| Capacity | 1,2,3,5,6,10,20,30,50,100,150N.m |
| Rated output | 1.5±10%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep(30min) | ≤0.1%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.1%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 350±5Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀3x3000mm |

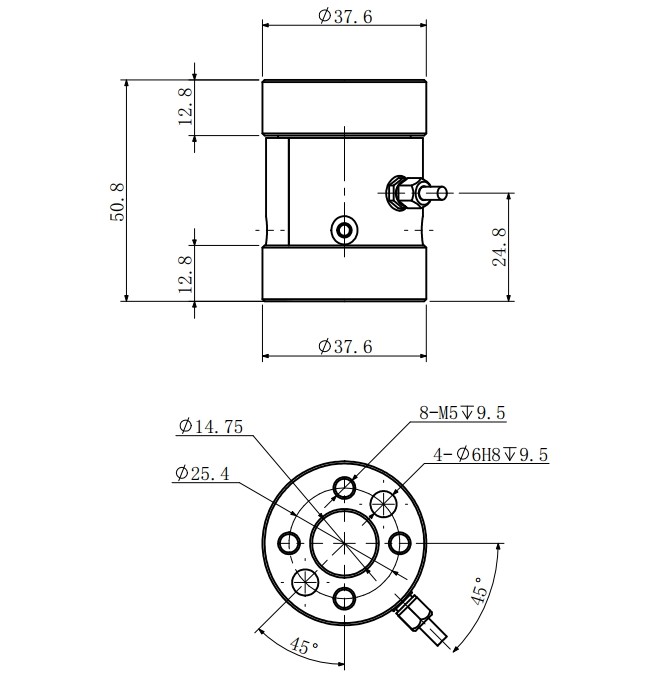

3. Dimension
Advantages of Static Torque Transducers.
1. Extremely robust
2. Best quality
3. No wear and tear
4. Proven technology
5. Customisable scaling of the required measuring range
6. Highly accurate signals (no signal falsification)
7. fast signal output for applications up to 30,000 rpm
8. Miniature versions and multicomponent sensors also available
4. Application
1-150N·M Aluminum Alloy Discontinuous Static Torque Sensor Force Torque Sensor FA601 could be used in test systems for static torque detection.
1. Marine/Offshore
2. Automotive industry
3.Aerospace
4.Vitality
5.Research and development
6.Laboratory
7.Testing equipment
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
